NLAS3699MN1R2G,Analog Switches, Multiplexers, Demultiplexers,IC SWITCH DUAL DPDT 16QFN
Reference Only

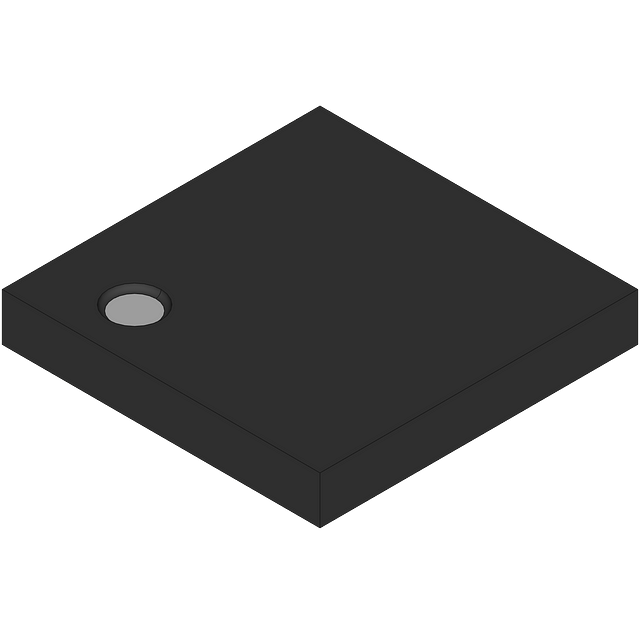

NLAS3699MN1R2G
IC SWITCH DUAL DPDT 16QFN
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: NLAS3699MN1R2G
Model Part Number: NLAS3699MN1R2G
ONSEMI
Datasheet
Available Packaging
Standard
119509 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
TypeAnalog Switch
Manufactureronsemi
Circuit configuration2x2:2
Product CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
Maximum on-state resistance0.65Ohm
-3db Bandwidth20MHz
Channel Capacitance (CS(off), CD(off))7pF
PackageQFN EP
Channel-to-Channel Matching (ΔRon)50mOhm
Charge Injection50pC
Crosstalk-62dB @ 100kHz
Current - Leakage (IS(off)) (Max)500nA
Mounting TypeSurface Mount
Multiplexer/Demultiplexer Circuit2:2
Number of Circuits2
On-State Resistance (Max)550mOhm
Operating Temperature-40°C ~ 85°C (TA)
Package / Case16-VFQFN Exposed Pad
Product StatusObsolete
Supplier Device Package16-QFN (3x3)
Switch CircuitDPDT
Switch Time (Ton, Toff) (Max)50ns, 50ns
Voltage - Supply, Dual (V±)-
Voltage - Supply, Single (V+)1.65V ~ 4.5V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
Documents
Datasheet
Datasheet
