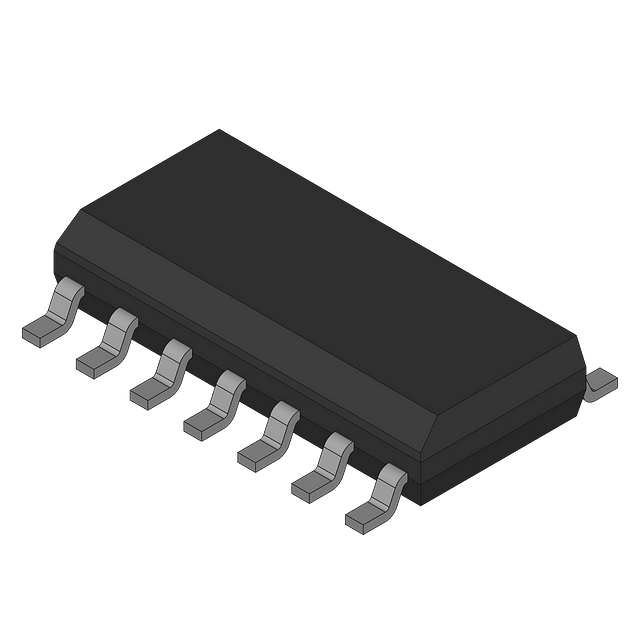

MC14011BDG,CMOS logic,IC GATE NAND 4CH 2-INP 14SOIC
Reference Only
MC14011BDG
IC GATE NAND 4CH 2-INP 14SOIC
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: MC14011BDG
Model Part Number: MC14011BDG
Product Category: CMOS logic
ONSEMI
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
SeriesCD4000
Manufactureronsemi
Function4CH 2-Input NAND Gate
Product CategoryLogic - Gates and Inverters
Current - Output High, Low8.8mA, 8.8mA
PackageSOIC
Current - Quiescent (Max)1 µA
Power-supply voltage3.3|5|9|12|15V
Features-
Manufacturer PackagingTube
Logic Level - High3.5V ~ 11V
Manufacturer packaging quantity55
Logic Level - Low1.5V ~ 4V
Logic TypeNAND Gate
Max Propagation Delay @ V, Max CL80ns @ 15V, 50pF
Mounting TypeSurface Mount
Number of Circuits4
Number of Inputs2
Operating Temperature-55°C ~ 125°C
Package / Case14-SOIC (0.154", 3.90mm Width)
Product StatusActive
Supplier Device Package14-SOIC
Voltage - Supply3V ~ 18V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
Documents
Datasheet
