NCS213RSQT2G,Specific Purpose Amplifier,IC CURRENT SENSE 1 CIRCUIT SC88
Reference Only

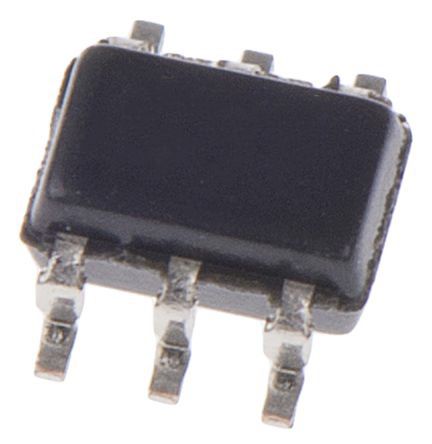

NCS213RSQT2G
IC CURRENT SENSE 1 CIRCUIT SC88
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: NCS213RSQT2G
Model Part Number: NCS213RSQT2G
Product Category: Specific Purpose Amplifier
ONSEMI
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Manufactureronsemi
Input bias current39uA
Product CategoryLinear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Operating temperature range-40 to 125C
Supply voltage2.2 to 26V
-3db Bandwidth90 kHz
Bandwidth90kHz
Amplifier TypeCurrent Sense
Current - Input Bias39 µA
Mounting TypeSurface Mount
Current - Output / Channel-
Package6-TSSOP|SC-88|SOT-363
Current - Supply40µA
Series nameZero Drift
Gain Bandwidth Product-
Supply current40uA
Output typeRail-to-Rail
Input offset voltage5uV
Amp typeCurrent Detection
Operating Temperature-40°C ~ 125°C
Package (Supplier)SC-88/SC70-6/SOT-363
Package / Case6-TSSOP, SC-88, SOT-363
Number of circuits1
Product StatusActive
Slew rate1V/µs
Supplier Device PackageSC-88/SC70-6/SOT-363
Voltage - Input Offset5 µV
Voltage - Supply Span (Max)26 V
Voltage - Supply Span (Min)2.2 V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
Documents
Datasheet
