NCS199A3SQT2G,Specific Purpose Amplifier,IC CURRENT SENSE 1 CIRCUIT SC88

Reference Only

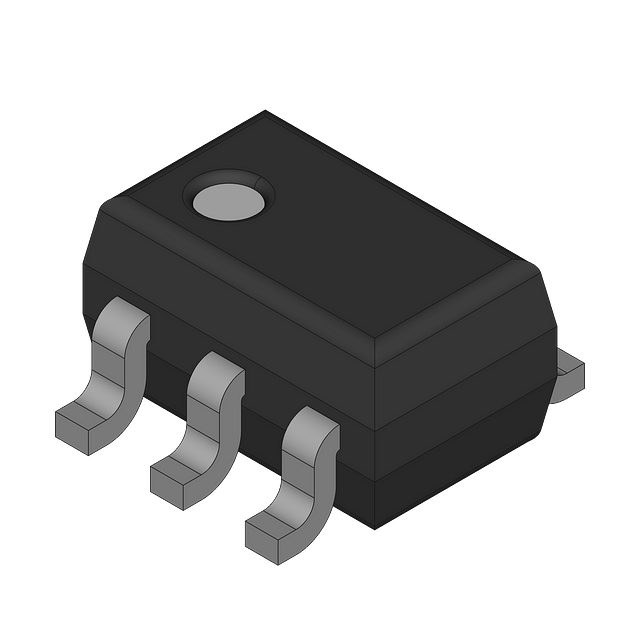

NCS199A3SQT2G

IC CURRENT SENSE 1 CIRCUIT SC88

Availability

Standard: 71960 In Stock

Product Details

Manufacturer: ONSEMI

SN Part Number: NCS199A3SQT2G

Model Part Number: NCS199A3SQT2G

Product Category: Specific Purpose Amplifier

71960 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Manufacturer	onsemi
Input bias current	60uA
Product Category	Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Operating temperature range	-40 to 125C
Supply voltage	2.7 to 26V
-3db Bandwidth	40 kHz
Bandwidth	40kHz
Amplifier Type	Current Sense
Current - Input Bias	60 µA
Mounting Type	Surface Mount
Current - Output / Channel	-
Package	6-TSSOP\|SC-88\|SOT-363
Current - Supply	65µA
Supply current	65uA
Gain Bandwidth Product	-
Output type	Rail-to-Rail
Input offset voltage	5uV
Amp type	Current Detection
Operating Temperature	-40°C ~ 125°C
Package (Supplier)	SC-88/SC70-6/SOT-363
Number of circuits	1
Package / Case	6-TSSOP, SC-88, SOT-363
Slew rate	0.4V/µs
Product Status	Obsolete
Supplier Device Package	SC-88/SC70-6/SOT-363
Voltage - Input Offset	5 µV
Voltage - Supply Span (Max)	26 V
Voltage - Supply Span (Min)	2.7 V
