SN74AHC14DBR,Inverter Schmitt Trigger,IC INV SCHMITT 6CH 1-IN 14SSOP
Reference Only

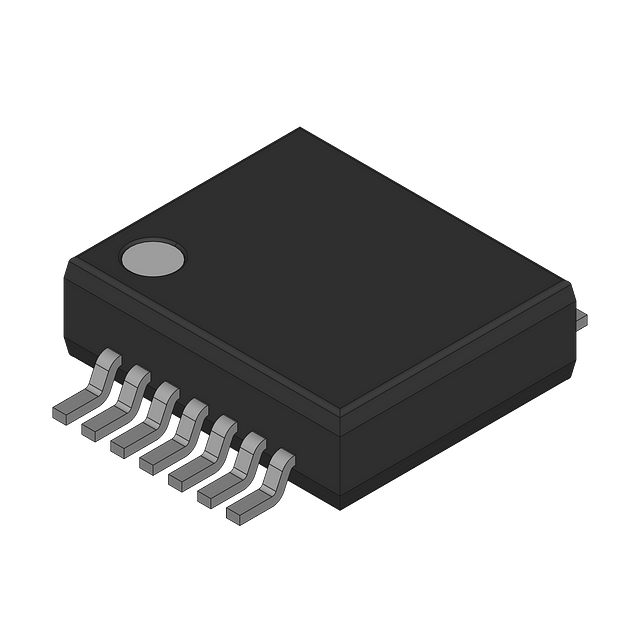

SN74AHC14DBR
IC INV SCHMITT 6CH 1-IN 14SSOP
Availability
Product Details
Manufacturer: Texas Instruments
SN Part Number: SN74AHC14DBR
Model Part Number: SN74AHC14DBR
Product Category: Inverter Schmitt Trigger
Texas Instruments
Standard
37890 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
ManufacturerTexas Instruments
SeriesAHC
FunctionInverter Schmitt Trigger
Product CategoryLogic - Gates and Inverters
Current - Output High, Low8mA, 8mA
Package14SSOP
Current - Quiescent (Max)2 µA
Power-supply voltage2.5|3.3|5V
FeaturesSchmitt Trigger
Logic Level - High2.2V ~ 3.85V
Logic Level - Low0.9V ~ 1.65V
Logic TypeInverter
Max Propagation Delay @ V, Max CL10.6ns @ 5V, 50pF
Mounting TypeSurface Mount
Number of Circuits6
Number of Inputs1
Operating Temperature-40°C ~ 125°C
Package / Case14-SSOP (0.209", 5.30mm Width)
Product StatusActive
Supplier Device Package14-SSOP
Voltage - Supply2V ~ 5.5V
