MC74AC14DG,Inverter Schmitt Trigger,IC INVERTER 6CH 1-INP 14SOIC
Reference Only

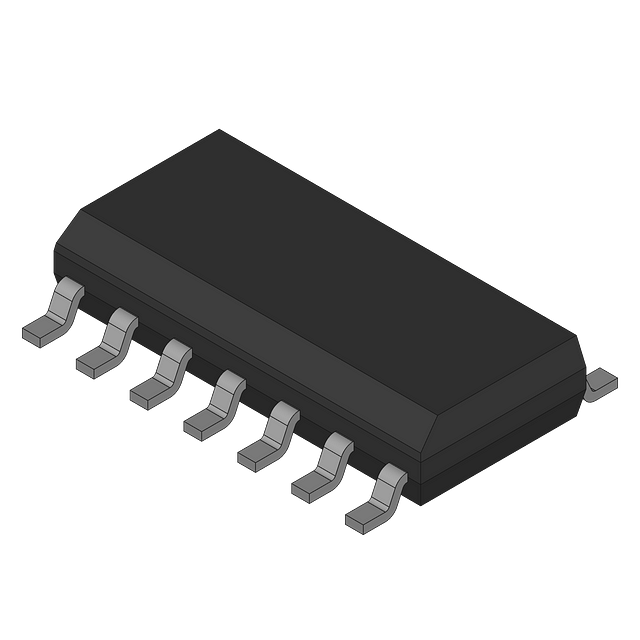

MC74AC14DG
IC INVERTER 6CH 1-INP 14SOIC
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: MC74AC14DG
Model Part Number: MC74AC14DG
Product Category: Inverter Schmitt Trigger
ONSEMI
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Series74AC
Manufactureronsemi
FunctionInverter Schmitt Trigger
Product CategoryLogic - Gates and Inverters
Current - Output High, Low24mA, 24mA
Package14SOIC
Current - Quiescent (Max)4 µA
Power-supply voltage5V
Features-
Logic Level - High2.2V ~ 3.9V
Logic Level - Low0.5V ~ 1.1V
Logic TypeInverter
Max Propagation Delay @ V, Max CL10ns @ 5V, 50pF
Mounting TypeSurface Mount
Number of Circuits6
Number of Inputs1
Operating Temperature-40°C ~ 85°C
Package / Case14-SOIC (0.154", 3.90mm Width)
Product StatusActive
Supplier Device Package14-SOIC
Voltage - Supply2V ~ 6V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
Documents
Datasheet
