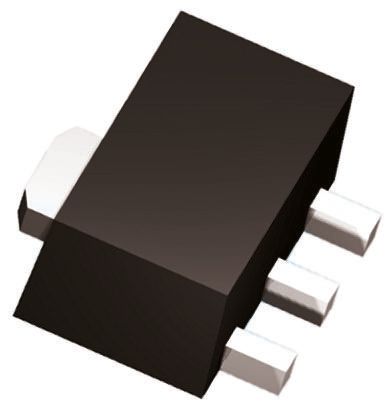

MCP1804T-5002I/MB,Linear Regulator,IC REG LINEAR 5V 150MA SOT89-3
Reference Only
MCP1804T-5002I/MB
IC REG LINEAR 5V 150MA SOT89-3
Availability
Product Details
Manufacturer: Microchip Technology
SN Part Number: MCP1804T-5002I/MB
Model Part Number: MCP1804T-5002I/MB
Product Category: Linear Regulator
Microchip Technology
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
TypeLDO
ManufacturerMicrochip Technology
Product CategoryPMIC - Voltage Regulators - Linear
Output typeFixed
Control Features-
Number of Regulators1
Current - Output150mA
Input voltage28V
Current - Quiescent (Iq)105 µA
Output voltage5V
Current - Supply (Max)125 µA
Dropout voltage0.19@20mA|1@100mAV
Output current0.15A
Quiescent Current105uA
Operating Temperature-40°C ~ 85°C
Supply current125uA
Output ConfigurationPositive
PSRR50dB (1kHz)
Protection FeaturesOver Current, Over Temperature
Operating temperature range-40 to 85C
Package / CaseTO-243AA
Mounting TypeSurface Mount
Product StatusActive
PackageTO-243AA
Fan-out1
Maximum input voltage28V
Supplier Device PackageSOT-89-3
Power-supply voltage range2V
Voltage - Input (Max)28V
FunctionLDO
Voltage - Output (Max)-
Manufacturer PackagingTape & Reel
Voltage - Output (Min/Fixed)5V
Manufacturer packaging quantity1000
Voltage Dropout (Max)1.3V @ 100mA
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
