74LCX14M,TTL logic,IC INV SCHMITT 6CH 1-IN 14SOIC
Reference Only

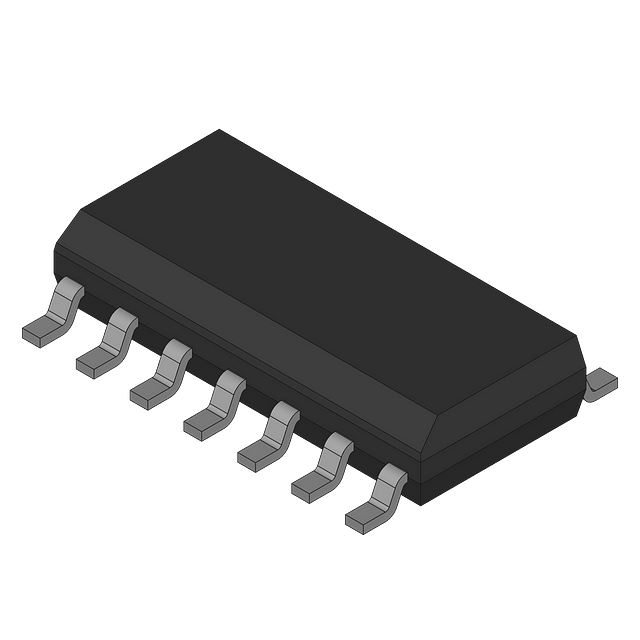

74LCX14M
IC INV SCHMITT 6CH 1-IN 14SOIC
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: 74LCX14M
Model Part Number: 74LCX14M
Product Category: TTL logic
ONSEMI
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Manufactureronsemi
SeriesLCX
FunctionInverter Schmitt Trigger
Product CategoryLogic - Gates and Inverters
Current - Output High, Low24mA, 24mA
PackageSOIC N
Current - Quiescent (Max)10 µA
FeaturesSchmitt Trigger
Logic Level - High1.7V ~ 2.2V
Logic Level - Low0.4V ~ 0.6V
Logic TypeInverter
Max Propagation Delay @ V, Max CL6.5ns @ 3.3V, 50pF
Mounting TypeSurface Mount
Number of Circuits6
Number of Inputs1
Operating Temperature-40°C ~ 85°C
Package / Case14-SOIC (0.154", 3.90mm Width)
Product StatusObsolete
Supplier Device Package14-SOIC
Voltage - Supply2V ~ 3.6V
