LNK305PN,DC/DC Switching Regulators,IC OFFLINE SWITCH MULT TOP 8DIP
Reference Only

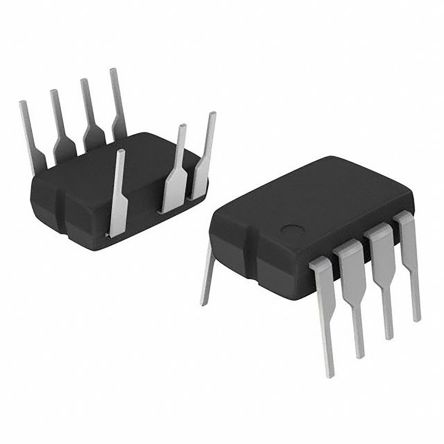

LNK305PN
IC OFFLINE SWITCH MULT TOP 8DIP
Availability
Product Details
Manufacturer: Power Integrations
SN Part Number: LNK305PN
Model Part Number: LNK305PN
Product Category: DC/DC Switching Regulators
Power Integrations
Standard
11835 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
TypeOff Line Switcher
ManufacturerPower Integrations
Product CategoryPMIC - AC DC Converters, Offline Switchers
PackagePDIP-8B
Control Features-
Duty Cycle69%
Fault ProtectionCurrent Limiting, Open Loop, Over Temperature, Short Circuit
Frequency - Switching66kHz
Internal Switch(s)Yes
Mounting TypeThrough Hole
Operating Temperature-40°C ~ 150°C (TJ)
Output IsolationNon-Isolated
Package / Case8-DIP (0.300", 7.62mm), 7 Leads
Power (Watts)-
Product StatusActive
Supplier Device Package8-PDIP-B
TopologyBuck, Buck-Boost, Flyback
Voltage - Breakdown700V
Voltage - Start Up-
Voltage - Supply (Vcc/Vdd)-
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
Documents
Datasheet
