FK4B01120L1,FETs - Single,CSP SINGLE N-CHANNEL MOSFET

Reference Only

FK4B01120L1

CSP SINGLE N-CHANNEL MOSFET

Availability

Standard: 2000 In Stock

Product Details

Manufacturer: Panasonic Electronic Components

SN Part Number: FK4B01120L1

Model Part Number: FK4B01120L1

Product Category: FETs - Single

2000 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Packaging	-
Series	-
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	3.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	24 mOhm @ 1.5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 394µA
Gate Charge (Qg) (Max) @ Vgs	7nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	490pF @ 10V
FET Feature	-
Power Dissipation (Max)	370mW (Ta)
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount

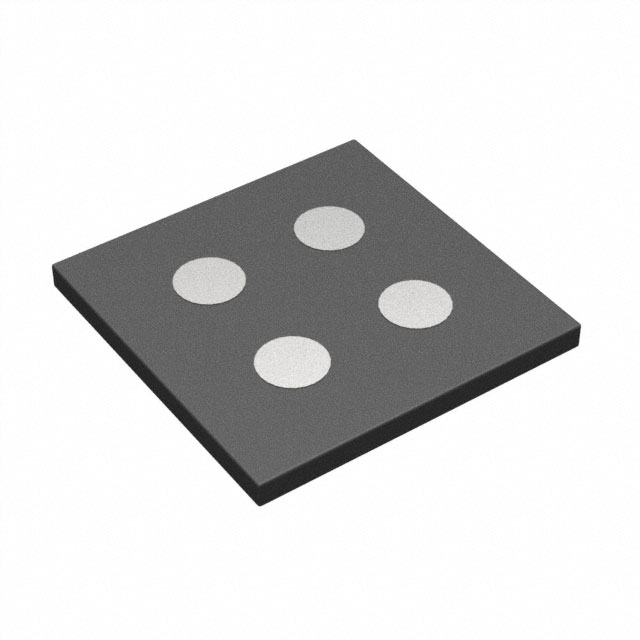

Supplier Device Package	ULGA004-W-1010-RA01
Package / Case	4-XFLGA, CSP

Other Information

Packing

Minimum packaging

Minimum order quantity

1000

Documents

Datasheet
