FJ4B01110L1,FETs - Single,CSP SINGLE P-CHANNEL MOSFET

Reference Only

FJ4B01110L1

CSP SINGLE P-CHANNEL MOSFET

Availability

Standard: 2000 In Stock

Product Details

Manufacturer: Panasonic Electronic Components

SN Part Number: FJ4B01110L1

Model Part Number: FJ4B01110L1

Product Category: FETs - Single

2000 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Packaging	-
Series	-
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	1.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	153 mOhm @ 700mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 598µA
Gate Charge (Qg) (Max) @ Vgs	3.3nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	226pF @ 10V
FET Feature	-
Power Dissipation (Max)	340mW (Ta)
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount

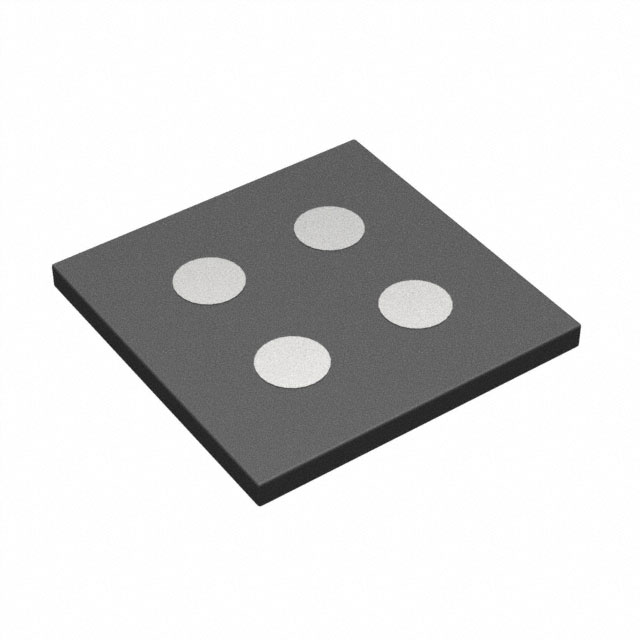

Supplier Device Package	ALGA004-W-0606-RA01
Package / Case	4-XFLGA, CSP

Other Information

Packing

Minimum packaging

Minimum order quantity

1000

Documents

Datasheet
