LM1086IS-5.0/NOPB,Linear Regulator,IC REG LIN 5V 1.5A DDPAK/TO263-3
Reference Only

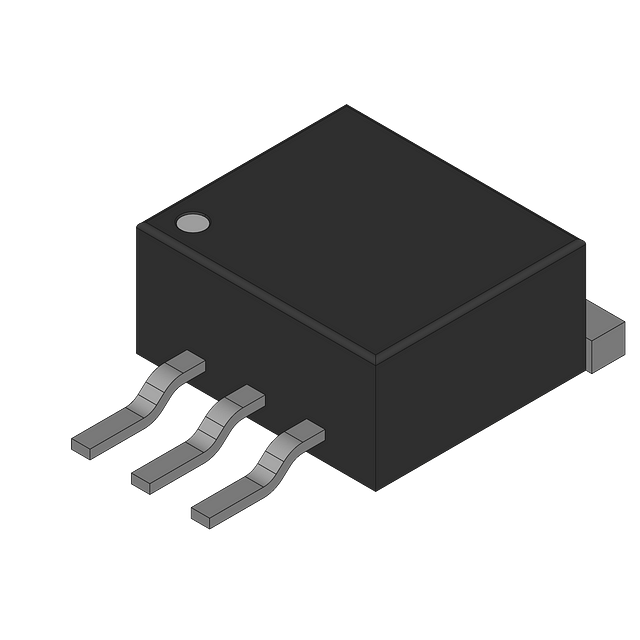

LM1086IS-5.0/NOPB
IC REG LIN 5V 1.5A DDPAK/TO263-3
Availability
Product Details
Manufacturer: Texas Instruments
SN Part Number: C1S746203782593
Model Part Number: LM1086IS-5.0/NOPB
Product Category: Linear Regulator
Texas Instruments
Available Packaging
Standard
309 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
TypePositive
ManufacturerTexas Instruments
Product CategoryPMIC - Voltage Regulators - Linear
Output typeFixed
Control Features-
Number of Regulators1
Current - Output1.5A
Input voltage25V
Current - Quiescent (Iq)5 mA
Output voltage5V
Current - Supply (Max)10 mA
Dropout voltage1.5V@1.5A
Output current1.5A
Quiescent Current5mA
Operating Temperature-40°C ~ 125°C
Supply current10mA
Output ConfigurationPositive
PSRR68dB (120Hz)
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating temperature range-40 to 125C
Package / CaseTO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Product StatusActive
Mounting TypeSurface Mount
PackageTO-263-4/D²Pak(3-Lead+Tab)/TO-263AA
Fan-out1
Supplier Device PackageDDPAK/TO-263-3
Maximum input voltage30V
Power-supply voltage range2.6V
Voltage - Input (Max)25V
FunctionLDO
Voltage - Output (Max)-
Manufacturer PackagingTube
Voltage - Output (Min/Fixed)5V
Manufacturer packaging quantity450
Voltage Dropout (Max)1.5V @ 1.5A
Other Information
Packing
Tube
Minimum packaging
1
Minimum order quantity
1
