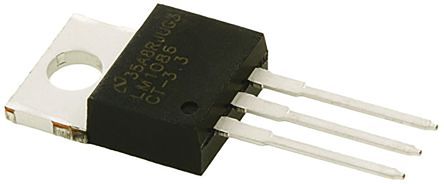

LM1086CT-3.3/NOPB,Linear Regulator,IC REG LINEAR 3.3V 1.5A TO220-3

Reference Only

LM1086CT-3.3/NOPB

IC REG LINEAR 3.3V 1.5A TO220-3

Availability

Standard: 155 In Stock

Product Details

Manufacturer: Texas Instruments

SN Part Number: C1S746203363972

Model Part Number: LM1086CT-3.3/NOPB

Product Category: Linear Regulator

Texas Instruments

155 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Type	Positive
Manufacturer	Texas Instruments
Product Category	PMIC - Voltage Regulators - Linear
Output type	Fixed
Control Features	-
Number of Regulators	1
Current - Output	1.5A
Input voltage	2.6 to 29V
Current - Quiescent (Iq)	5 mA
Output voltage	3.3V
Current - Supply (Max)	10 mA
Dropout voltage	1.5V@1.5A
Output current	1.5A
Quiescent Current	5mA
Supply current	10mA
Output Configuration	Positive
PSRR	72dB (120Hz)
Protection Features	Over Current, Over Temperature, Short Circuit
Operating temperature range	0 to 125C
Package / Case	TO-220-3
Mounting Type	Through Hole
Product Status	Active
Package	TO-220(NDE)3
Number of channels	1
Fan-out	1
Supplier Device Package	TO-220-3
Voltage - Input (Max)	27V
Maximum input voltage	30V
Power-supply voltage range	2.6V
Voltage - Output (Max)	-
Grade	Standard
Voltage - Output (Min/Fixed)	3.3V
Voltage Dropout (Max)	1.5V @ 1.5A
Function	LDO
Operating temperature	0°C ~ 125°C
Output Voltage Setting	Fixed
Manufacturer Packaging	Tube
Manufacturer packaging quantity	450
