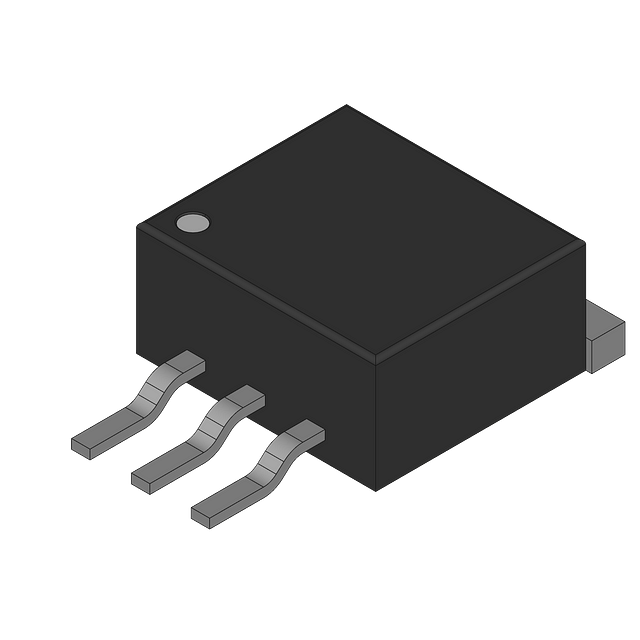

MC7905ACD2TR4G,Linear Regulator,IC REG LINEAR -5V 1A D2PAK

Reference Only

MC7905ACD2TR4G

IC REG LINEAR -5V 1A D2PAK

Availability

Standard: 8 In Stock

Product Details

Manufacturer: ONSEMI

SN Part Number: C1S541900997826

Model Part Number: MC7905ACD2TR4G

Product Category: Linear Regulator

8 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Type	Negative
Manufacturer	onsemi
Output type	Fixed
Product Category	PMIC - Voltage Regulators - Linear
Control Features	-
Number of Regulators	1
Input voltage	-35V
Current - Output	1A
Output voltage	-5V
Current - Quiescent (Iq)	-
Dropout voltage	1.3V@1A
Current - Supply (Max)	-
Output current	1A
PSRR	70dB (120Hz)
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 125°C
Operating temperature range	0 to 125C
Output Configuration	Negative
Mounting Type	Surface Mount
Package	TO-263-3/D²Pak(2-Lead+Tab)/TO-263AB
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Product Status	Active
Fan-out	1
Maximum input voltage	-35V
Function	Standard
Manufacturer Packaging	Tape & Reel
Supplier Device Package	D2PAK-3
Manufacturer packaging quantity	800
Voltage - Input (Max)	-35V
Voltage - Output (Max)	-
Voltage - Output (Min/Fixed)	-5V
Voltage Dropout (Max)	1.3V @ 1A (Typ)

Other Information

Packing

Cut Tape

Minimum packaging

1

Minimum order quantity

1
