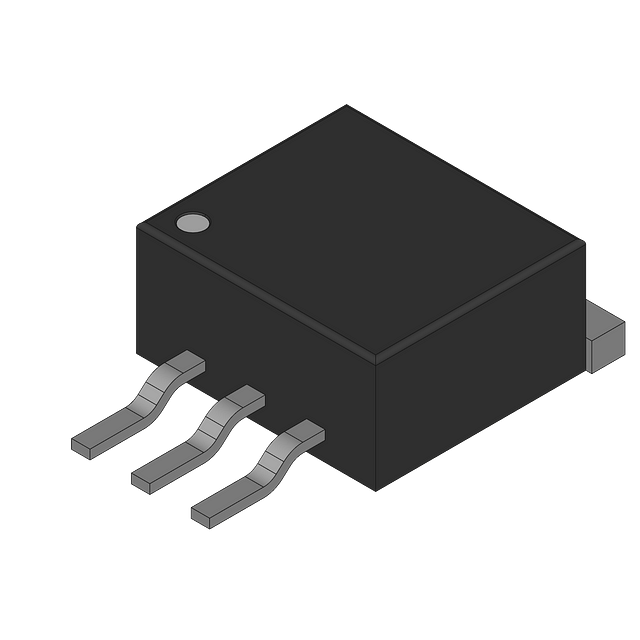

MC7805BDTRKG,Linear Regulator,IC REG LINEAR 5V 1A DPAK

Reference Only

MC7805BDTRKG

IC REG LINEAR 5V 1A DPAK

Availability

Standard: 3000 In Stock

Product Details

Manufacturer: ONSEMI

SN Part Number: MC7805BDTRKG

Model Part Number: MC7805BDTRKG

Product Category: Linear Regulator

3000 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Type	Positive
Manufacturer	onsemi
Output type	Fixed
Product Category	PMIC - Voltage Regulators - Linear
Control Features	-
Number of Regulators	1
Input voltage	35V
Current - Output	1A
Output voltage	5V
Current - Quiescent (Iq)	8 mA
Dropout voltage	2V@1A
Current - Supply (Max)	-
Output current	1A
Quiescent Current	8mA
PSRR	68dB (120Hz)
Operating Temperature	-40°C ~ 125°C
Protection Features	Over Temperature, Short Circuit
Output Configuration	Positive
Operating temperature range	-40 to 125C
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Package	TO-252-3/DPak(2-Lead+Tab)/SC-63
Product Status	Active
Fan-out	1
Maximum input voltage	35V
Function	Standard
Supplier Device Package	DPAK
Manufacturer Packaging	Tape & Reel
Voltage - Input (Max)	35V
Manufacturer packaging quantity	2500
Voltage - Output (Max)	-
Voltage - Output (Min/Fixed)	5V
Voltage Dropout (Max)	2V @ 1A (Typ)

Other Information

Packing

Minimum packaging

0

Minimum order quantity

0

Documents

Datasheet
