MC33269DTRK-5.0G,Linear Regulator,IC REG LINEAR 5V 800MA DPAK
Reference Only

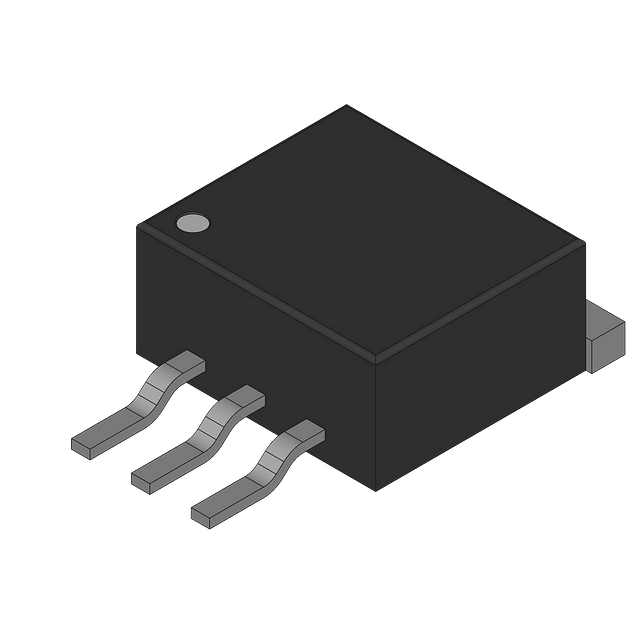

MC33269DTRK-5.0G
IC REG LINEAR 5V 800MA DPAK
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: C1S541900993176
Model Part Number: MC33269DTRK-5.0G
Product Category: Linear Regulator
ONSEMI
Standard
40 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
TypePositive
Manufactureronsemi
Output typeFixed
Product CategoryPMIC - Voltage Regulators - Linear
Control Features-
Number of Regulators1
Input voltage20V
Current - Output800mA
Output voltage5V
Current - Quiescent (Iq)-
Dropout voltage1.35V@800mA
Current - Supply (Max)-
Output current0.8A
PSRR55dB (120Hz)
Protection FeaturesOver Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C
Operating temperature range-40 to 125C
Output ConfigurationPositive
Mounting TypeSurface Mount
PackageTO-252-3/DPak(2-Lead+Tab)/SC-63
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
Product StatusActive
Fan-out1
Maximum input voltage20V
FunctionLDO
Manufacturer PackagingTape & Reel
Supplier Device PackageDPAK
Manufacturer packaging quantity2500
Voltage - Input (Max)20V
Voltage - Output (Max)-
Voltage - Output (Min/Fixed)5V
Voltage Dropout (Max)1.35V @ 800mA
Other Information
Packing
Cut Tape
Minimum packaging
1
Minimum order quantity
10
