LM317LDR2G,Linear Regulator,IC REG LIN POS ADJ 100MA 8SOIC
Reference Only

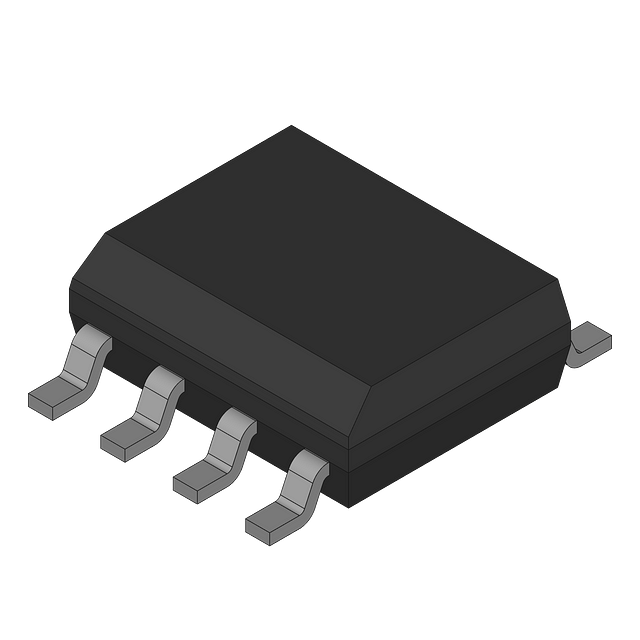

LM317LDR2G
IC REG LIN POS ADJ 100MA 8SOIC
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: C1S541900484696
Model Part Number: LM317LDR2G
Product Category: Linear Regulator
ONSEMI
Standard
312 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
TypePositive
Manufactureronsemi
Output typeAdjustable
Product CategoryPMIC - Voltage Regulators - Linear
Control Features-
Number of Regulators1
Current - Output100mA
Input voltage40V
Output voltage1.2V
Current - Quiescent (Iq)10 mA
Maximum output voltage37V
Current - Supply (Max)-
Output current0.1A
Quiescent Current10mA
PSRR80dB (120Hz)
Operating Temperature0°C ~ 125°C
Protection FeaturesOver Current, Over Temperature, Short Circuit
Output ConfigurationPositive
Operating temperature range0 to 125C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Package8-SOIC
Product StatusActive
Fan-out1
Maximum input voltage40V
FunctionLDO
Supplier Device Package8-SOIC
Manufacturer PackagingTape & Reel
Voltage - Input (Max)40V
Manufacturer packaging quantity2500
Voltage - Output (Max)37V
Voltage - Output (Min/Fixed)1.2V
Voltage Dropout (Max)-
Other Information
Packing
Cut Tape
Minimum packaging
1
Minimum order quantity
10
