MC74HC08ADR2G,Gates, Inverter,IC GATE AND 4CH 2-INP 14SOIC
Reference Only

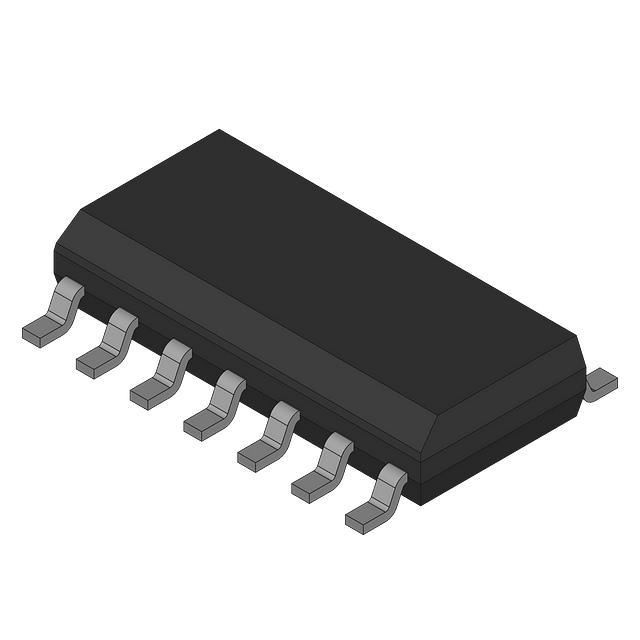

MC74HC08ADR2G
IC GATE AND 4CH 2-INP 14SOIC
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: C1S541900628777
Model Part Number: MC74HC08ADR2G
Product Category: Gates, Inverter
ONSEMI
Standard
25 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Series74HC
Manufactureronsemi
FunctionAND
Product CategoryLogic - Gates and Inverters
Current - Output High, Low5.2mA, 5.2mA
PackageSOIC N
Current - Quiescent (Max)1 µA
Power-supply voltage2.5|3.3|5V
Features-
Manufacturer packaging quantity2500
Logic Level - High1.5V ~ 4.2V
Logic Level - Low0.5V ~ 1.8V
Logic TypeAND Gate
Max Propagation Delay @ V, Max CL13ns @ 6V, 50pF
Mounting TypeSurface Mount
Number of Circuits4
Number of Inputs2
Operating Temperature-55°C ~ 125°C
Package / Case14-SOIC (0.154", 3.90mm Width)
Product StatusActive
Supplier Device Package14-SOIC
Voltage - Supply2V ~ 6V
Other Information
Packing
Cut Tape
Minimum packaging
5
Minimum order quantity
5
Documents
Datasheet
