TL594CDR2G,DC/DC Switching Regulators,IC REG CTRLR BCK/PSH-PULL 16SOIC
Reference Only

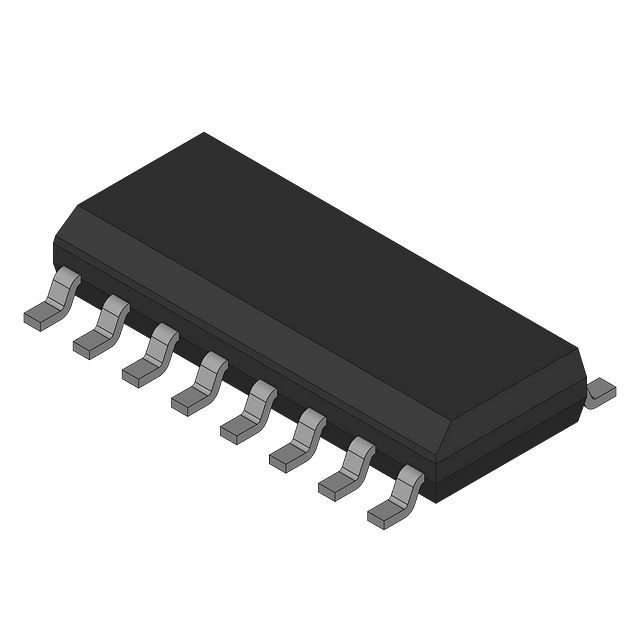

TL594CDR2G
IC REG CTRLR BCK/PSH-PULL 16SOIC
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: TL594CDR2G
Model Part Number: TL594CDR2G
Product Category: DC/DC Switching Regulators
ONSEMI
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Manufactureronsemi
PackageSOIC
Product CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
Output current500mA
Frequency300KHz
Clock SyncNo
Control FeaturesDead Time Control, Frequency Control
Manufacturer PackagingTape & Reel
Duty Cycle (Max)96%
Manufacturer packaging quantity2500
Frequency - Switching300kHz
FunctionStep-Down, Step-Up/Step-Down
Mounting TypeSurface Mount
Number of Outputs2
Operating Temperature-40°C ~ 85°C (TA)
Output ConfigurationPositive
Output Phases1
Output TypeTransistor Driver
Package / Case16-SOIC (0.154", 3.90mm Width)
Product StatusActive
Serial Interfaces-
Supplier Device Package16-SOIC
Synchronous RectifierYes
TopologyBuck, Push-Pull
Voltage - Supply (Vcc/Vdd)7V ~ 40V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
