SN74F30N,TTL logic,IC GATE NAND 1CH 8-INP 14DIP
Reference Only

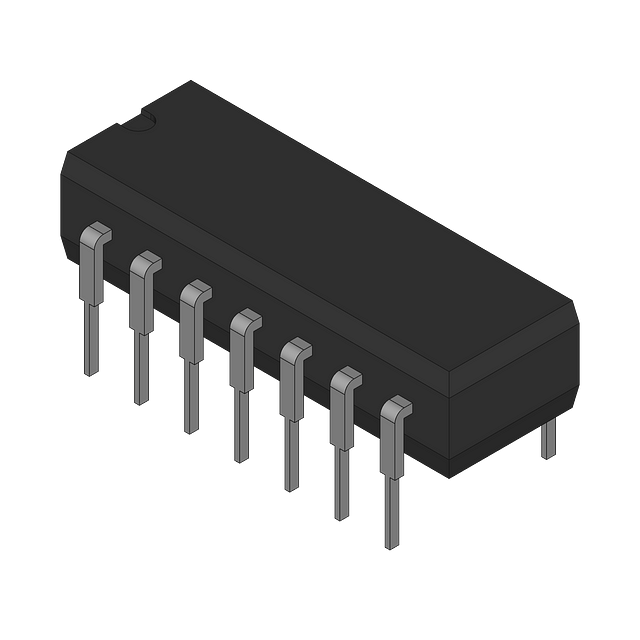

SN74F30N
IC GATE NAND 1CH 8-INP 14DIP
Availability
Product Details
Manufacturer: Texas Instruments
SN Part Number: SN74F30N
Model Part Number: SN74F30N
Product Category: TTL logic
Texas Instruments
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
SeriesF
ManufacturerTexas Instruments
FunctionNAND Gate
Product CategoryLogic - Gates and Inverters
Current - Output High, Low1mA, 20mA
Package14PDIP
Current - Quiescent (Max)1.5 mA
Features-
Logic Level - High2V
Logic Level - Low0.8V
Logic TypeNAND Gate
Max Propagation Delay @ V, Max CL5ns @ 5V, 50pF
Mounting TypeThrough Hole
Number of Circuits1
Number of Inputs8
Operating Temperature0°C ~ 70°C
Package / Case14-DIP (0.300", 7.62mm)
Product StatusActive
Supplier Device Package14-PDIP
Voltage - Supply4.5V ~ 5.5V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
Documents
Datasheet
