L296 - DC/DC Switching Regulators - Chipoda

Return to Search Results

L296,DC/DC Switching Regulators,IC REG BUCK ADJ 4A 15MULTIWATT

Reference Only

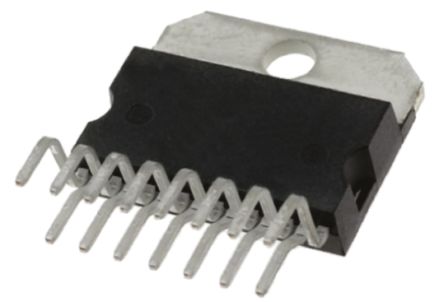

L296

IC REG BUCK ADJ 4A 15MULTIWATT

Availability

Standard: 3000 In Stock

Product Details

Manufacturer: STMicroelectronics

SN Part Number: L296

Model Part Number: L296

Product Category: DC/DC Switching Regulators

STMicroelectronics

3000 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Switching style	Step-down(Buck)
Manufacturer	STMicroelectronics
Type	Positive
Product Category	PMIC - Voltage Regulators - DC DC Switching Regulators
Current - Output	4A
Fan-out	1
Maximum input voltage	46V
Frequency - Switching	100kHz
Output voltage	5.1V
Input voltage	9 to 46V
Maximum output current	4A
Number of Outputs	1
Operating Temperature	-40°C ~ 150°C (TJ)
Operating temperature range	-40 to 150C
Power-supply voltage range	9V
Output Configuration	Positive
Package	Multiwatt-15 (Vertical/Bending Type and Alternating Lead)
Rectifier	No
Package / Case	Multiwatt-15 (Vertical, Bent and Staggered Leads)
Product Status	Active
Package (Supplier)	15-Multiwatt
Supplier Device Package	15-Multiwatt
Maximum output voltage	40V
Output current	4A
Synchronous Rectifier	No
Function	Step-Down
Output type	Adjustable
Voltage - Input (Max)	46V
Frequency	200KHz
Voltage - Input (Min)	9V
Voltage - Output (Max)	40V
Topology	Buck
Voltage - Output (Min/Fixed)	5.1V
Mounting Type	Through Hole
Frequency (switching)	100 kHz
Manufacturer packaging quantity	25

Other Information

Packing

Minimum packaging

0

Minimum order quantity

0

Documents

Datasheet
