CS5171GDR8G,DC/DC Switching Regulators,IC REG MULT CONFG ADJ 1.5A 8SOIC

Reference Only

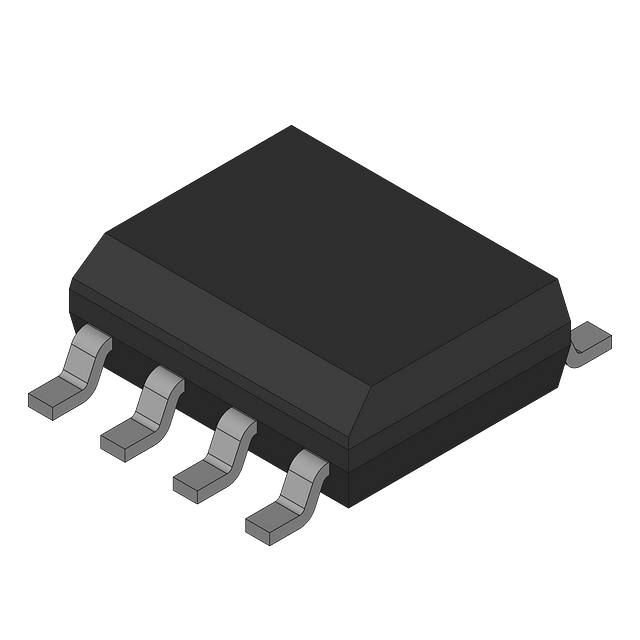

CS5171GDR8G

IC REG MULT CONFG ADJ 1.5A 8SOIC

Availability

Standard: 3000 In Stock

Product Details

Manufacturer: ONSEMI

SN Part Number: CS5171GDR8G

Model Part Number: CS5171GDR8G

Product Category: DC/DC Switching Regulators

3000 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Type	Positive or Negative
Manufacturer	onsemi
Product Category	PMIC - Voltage Regulators - DC DC Switching Regulators
Fan-out	1
Current - Output	1.5A (Switch)
Maximum input voltage	30V
Frequency - Switching	280kHz
Output voltage	1.28V
Maximum output current	1.5A
Operating temperature range	0C to 125C
Number of Outputs	1
Power-supply voltage range	2.7V
Package	8-SOIC 3.90mm Width
Operating Temperature	0°C ~ 125°C (TJ)
Rectifier	No
Output Configuration	Positive or Negative
Package (Supplier)	8-SOIC
Package / Case	8-SOIC (0.154", 3.90mm Width)
Maximum output voltage	40V (Switch)
Product Status	Active
Output current	1.5A (Switch)
Function	Step-Up, Step-Down, Step-Up/Step-Down
Supplier Device Package	8-SOIC
Output type	Adjustable
Synchronous Rectifier	No
Frequency	310KHz
Topology	Buck, Boost, Flyback, Forward Converter, SEPIC
Voltage - Input (Max)	30V
Mounting Type	Surface Mount
Voltage - Input (Min)	2.7V
Frequency (switching)	280 kHz
Voltage - Output (Max)	40V (Switch)
Voltage - Output (Min/Fixed)	1.28V

Other Information

Packing

Minimum packaging

0

Minimum order quantity

0
