2DMB80407CC,Gate Drivers,GATE DRIVER (+18V,-4V)

Reference Only

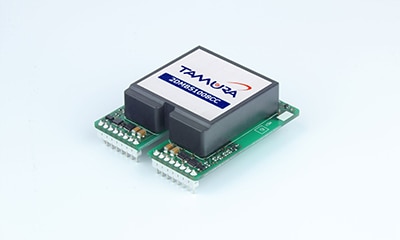

2DMB80407CC

GATE DRIVER (+18V,-4V)

Availability

Standard: 1 In Stock

Product Details

Manufacturer: Tamura

SN Part Number: C1S739600028836

Model Part Number: 2DMB80407CC

Product Category: Gate Drivers

Tamura

1 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Drive	2
Manufacturer	Tamura
Product Category	PMIC - Gate Drivers
Protection Features	Soft Turnoff/Mirror Clamp
Type	Gate Driver Module
Channel Type	Independent
Current - Peak Output (Source, Sink)	5mA, -
Input signal	3.3 to 5V
Gate voltage	+18(H)/-4(L)V
Driven Configuration	Half-Bridge
Operating temperature range	-40 to 85C
High Side Voltage - Max (Bootstrap)	-
Safety standard	UL508
Input Type	Non-Inverting
Gate type	IGBT, SiC MOSFET
Input voltage(DC)	13 to 28C
Logic Voltage - VIL, VIH	-
Manufacturer Packaging	Tray
Mounting Type	Through Hole
Manufacturer packaging quantity	120
Number of Drivers	2
Operating Temperature	-40°C ~ 85°C
Package / Case	Module
Product Status	Active
Rise / Fall Time (Typ)	500ns, 500ns
Supplier Device Package	Module
Voltage - Supply	3V ~ 5.5V

Other Information

Packing

Bulk

Minimum packaging

1

Minimum order quantity

1
