L6390D,Gate Drivers,IC GATE DRVR HALF-BRIDGE 16SO
Reference Only
L6390D

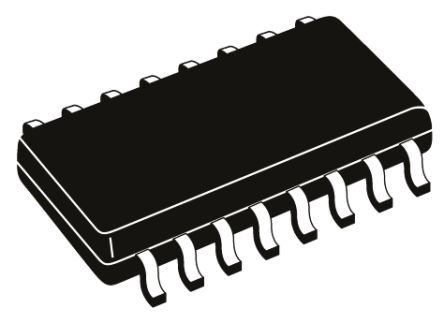

IC GATE DRVR HALF-BRIDGE 16SO
Availability
Product Details
Manufacturer: STMicroelectronics
SN Part Number: C1S730201215698
Model Part Number: L6390D
Product Category: Gate Drivers
STMicroelectronics
Standard
10 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
ManufacturerSTMicroelectronics
Maximum output current430mA
Product CategoryPMIC - Gate Drivers
PackageSO
Channel TypeIndependent
TypeHigh and Low Side
Current - Peak Output (Source, Sink)290mA, 430mA
Driven ConfigurationHalf-Bridge
Gate TypeIGBT, N-Channel MOSFET
High Side Voltage - Max (Bootstrap)600 V
Input TypeNon-Inverting
Logic Voltage - VIL, VIH1.1V, 1.9V
Mounting TypeSurface Mount
Number of Drivers2
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case16-SOIC (0.154", 3.90mm Width)
Product StatusActive
Rise / Fall Time (Typ)75ns, 35ns
Supplier Device Package16-SO
Voltage - Supply12.5V ~ 20V
Other Information
Packing
Pack
Minimum packaging
5
Minimum order quantity
5
Documents
Datasheet
