NCS199A2SQT2G,Specific Purpose Amplifier,IC CURRENT SENSE 1 CIRCUIT SC88
Reference Only
NCS199A2SQT2G

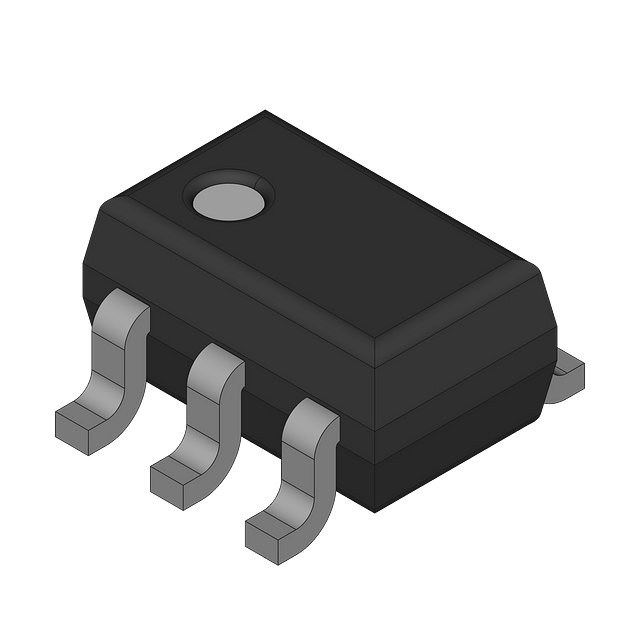

IC CURRENT SENSE 1 CIRCUIT SC88
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: NCS199A2SQT2G
Model Part Number: NCS199A2SQT2G
Product Category: Specific Purpose Amplifier
ONSEMI
Standard
4802029 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Manufactureronsemi
Input bias current60uA
Product CategoryLinear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Operating temperature range-40 to 125C
Supply voltage2.7 to 26V
-3db Bandwidth60 kHz
Bandwidth60kHz
Amplifier TypeCurrent Sense
Current - Input Bias60 µA
Mounting TypeSurface Mount
Current - Output / Channel-
Package6-TSSOP|SC-88|SOT-363
Current - Supply65µA
Supply current65uA
Gain Bandwidth Product-
Output typeRail-to-Rail
Input offset voltage5uV
Amp typeCurrent Detection
Operating Temperature-40°C ~ 125°C
Package (Supplier)SC-88/SC70-6/SOT-363
Number of circuits1
Package / Case6-TSSOP, SC-88, SOT-363
Slew rate0.4V/µs
Product StatusObsolete
Supplier Device PackageSC-88/SC70-6/SOT-363
Voltage - Input Offset5 µV
Voltage - Supply Span (Max)26 V
Voltage - Supply Span (Min)2.7 V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
