74ACT00SC,Other semiconductors,IC GATE NAND 4CH 2-INP 14SOIC
Reference Only

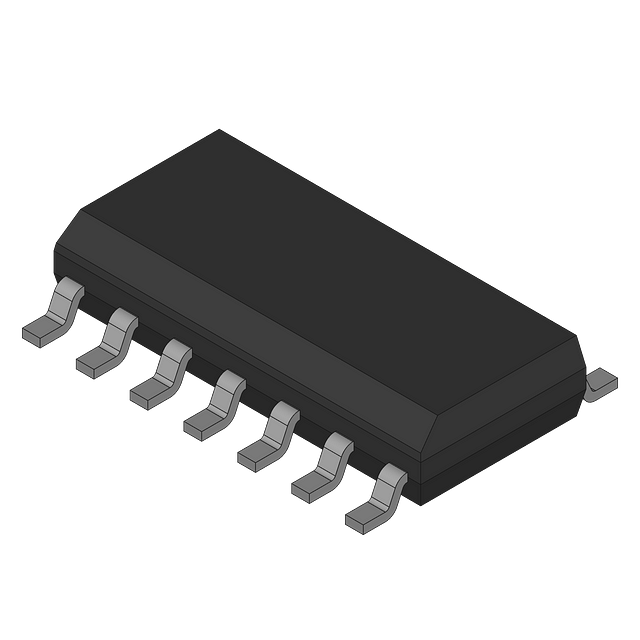

74ACT00SC
IC GATE NAND 4CH 2-INP 14SOIC
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: 74ACT00SC
Model Part Number: 74ACT00SC
Product Category: Other semiconductors
ONSEMI
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
PackageSOIC N
Manufactureronsemi
Product CategoryLogic - Gates and Inverters
Number of circuits4
Current - Output High, Low24mA, 24mA
Function4CH 2-Input NAND Gate
Current - Quiescent (Max)2 µA
Power-supply voltage5V
Features-
Logic Level - High2V
Logic Level - Low0.8V
Logic TypeNAND Gate
Max Propagation Delay @ V, Max CL9ns @ 5V, 50pF
Mounting TypeSurface Mount
Number of Inputs2
Operating Temperature-40°C ~ 85°C
Package / Case14-SOIC (0.154", 3.90mm Width)
Product StatusObsolete
Supplier Device Package14-SOIC
Voltage - Supply4.5V ~ 5.5V
