ULN2004D1013TR,Darlington Transistors,IC PWR RELAY 7NPN 1:1 16SO
Reference Only

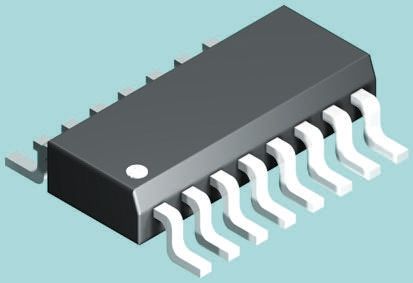

ULN2004D1013TR
IC PWR RELAY 7NPN 1:1 16SO
Availability
Product Details
Manufacturer: STMicroelectronics
SN Part Number: ULN2004D1013TR
Model Part Number: ULN2004D1013TR
Product Category: Darlington Transistors
STMicroelectronics
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
ManufacturerSTMicroelectronics
Product CategoryPMIC - Power Distribution Switches, Load Drivers
Current - Output (Max)500mA
Fault Protection-
Features-
Input TypeInverting
InterfaceParallel
Mounting TypeSurface Mount
Number of Outputs7
Operating Temperature-40°C ~ 85°C (TA)
Output ConfigurationLow Side
Output TypeNPN
Package / Case16-SOIC (0.154", 3.90mm Width)
Product StatusActive
Ratio - InputOutput1:1
Rds On (Typ)-
Supplier Device Package16-SO
Switch TypeRelay, Solenoid Driver
Voltage - Load50V (Max)
Voltage - Supply (Vcc/Vdd)Not Required
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
Documents
Datasheet
