LM431BCZX,REFERENCE,IC VREF SHUNT ADJ 1% TO92-3
Reference Only

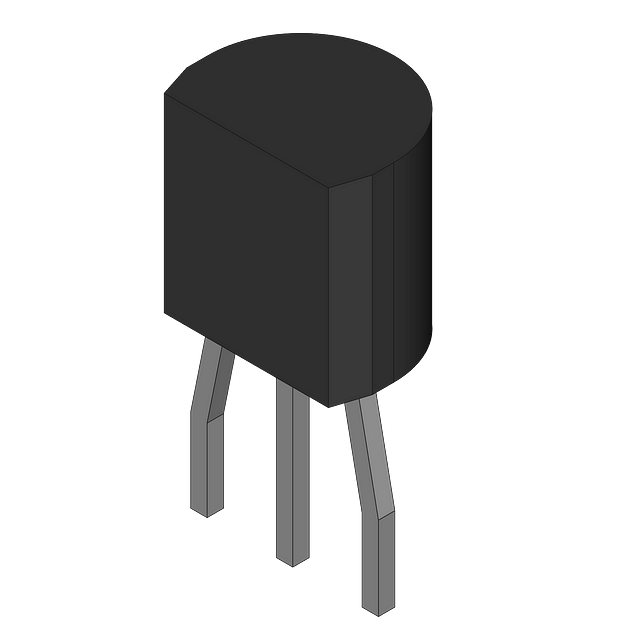

LM431BCZX
IC VREF SHUNT ADJ 1% TO92-3
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: LM431BCZX
Model Part Number: LM431BCZX
Product Category: REFERENCE
ONSEMI
Standard
19158 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
TypeAdjustable
Manufactureronsemi
Product CategoryPMIC - Voltage Reference
Number of channels1
Current - Cathode1 mA
Reference voltage2.495 to 36V
Current - Output100 mA
Output voltage accuracy1%
PackageTO-92R
Current - Supply-
Mounting TypeThrough Hole
Maximum input voltage37V
Noise - 0.1Hz to 10Hz-
Output voltage2.495 to 36V
Noise - 10Hz to 10kHz-
Operating Temperature-25°C ~ 85°C (TA)
Output TypeAdjustable
Package / CaseTO-226-3, TO-92-3 (TO-226AA) Formed Leads
Product StatusActive
Reference TypeShunt
Supplier Device PackageTO-92-3
Temperature Coefficient50ppm/°C Typical
Tolerance±1%
Voltage - Input-
Voltage - Output (Max)36 V
Voltage - Output (Min/Fixed)2.495V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
Documents
Datasheet
