TC7660EPA,Other Power Management ICs,IC REG CHARGE PUMP INV 20MA 8DIP

Reference Only

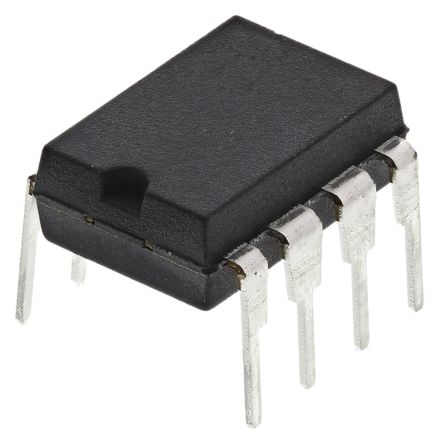

TC7660EPA

IC REG CHARGE PUMP INV 20MA 8DIP

Availability

Standard: 3000 In Stock

Product Details

Manufacturer: Microchip Technology

SN Part Number: TC7660EPA

Model Part Number: TC7660EPA

Product Category: Other Power Management ICs

3000 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Package	8-DIP7.62mm
Manufacturer	Microchip Technology
Output voltage	-Vin\|2Vin
Product Category	PMIC - Voltage Regulators - DC DC Switching Regulators
Current - Output	20mA
Function	Ratiometric
Frequency - Switching	10kHz
Application category	Extended
Frequency (switching)	10 kHz
Operating temperature range	-40 to 85C
Mounting Type	Through Hole
Number of Outputs	1
Maximum input voltage	10V
Operating Temperature	-40°C ~ 85°C (TA)
Supply current	1.5V
Output Configuration	Positive or Negative
Topology	Charge Pump
Package / Case	8-DIP (0.300", 7.62mm)
Output type	Fixed
Product Status	Active
Output Power	1.5V
Rectifier	No
Supplier Device Package	8-PDIP
Synchronous Rectifier	No
Type	Positive or Negative
Output current	0.02A
Package (Supplier)	8-PDIP
Voltage - Input (Max)	10V
Fan-out	1
Voltage - Input (Min)	1.5V
Manufacturer Packaging	Tube
Voltage - Output (Max)	-
Manufacturer packaging quantity	60
Voltage - Output (Min/Fixed)	-Vin, 2Vin

Other Information

Packing

Minimum packaging

0

Minimum order quantity

0

Documents

Datasheet
