FAN3111CSX,Gate Drivers,IC GATE DRVR LOW-SIDE SOT23-5
Reference Only

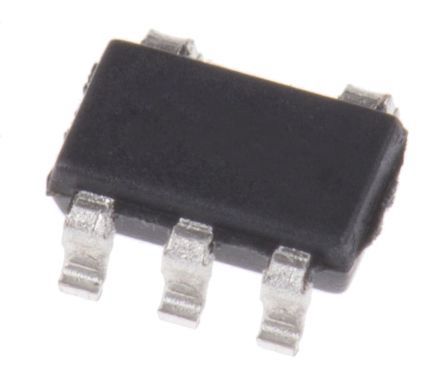

FAN3111CSX
IC GATE DRVR LOW-SIDE SOT23-5
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: C1S226600778622
Model Part Number: FAN3111CSX
Product Category: Gate Drivers
ONSEMI
Standard
605 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Manufactureronsemi
Maximum output current1.1A
Product CategoryPMIC - Gate Drivers
PackageSOT-23
TypeLow Side
Channel TypeSingle
Current - Peak Output (Source, Sink)1.4A, 1.4A
Driven ConfigurationLow-Side
Gate TypeN-Channel MOSFET
High Side Voltage - Max (Bootstrap)-
Input TypeInverting, Non-Inverting
Logic Voltage - VIL, VIH-
Mounting TypeSurface Mount
Number of Drivers1
Operating Temperature-40°C ~ 150°C (TJ)
Package / CaseSC-74A, SOT-753
Product StatusActive
Rise / Fall Time (Typ)9ns, 8ns
Supplier Device PackageSOT-23-5
Voltage - Supply4.5V ~ 18V
Other Information
Packing
Cut Tape
Minimum packaging
5
Minimum order quantity
5
Documents
Datasheet
