TC4431EOA,Gate Drivers,IC GATE DRVR HI/LOW SIDE 8SOIC
Reference Only

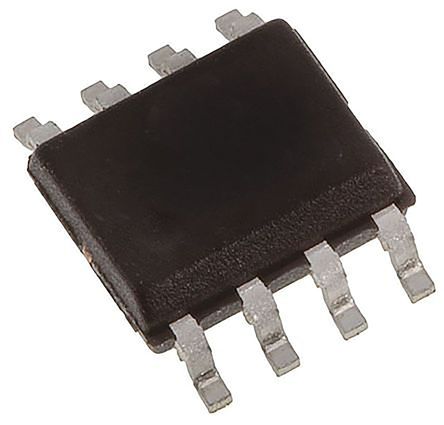

TC4431EOA
IC GATE DRVR HI/LOW SIDE 8SOIC
Availability
Product Details
Manufacturer: Microchip Technology
SN Part Number: TC4431EOA
Model Part Number: TC4431EOA
Product Category: Gate Drivers
Microchip Technology
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Number of drivers1
ManufacturerMicrochip Technology
Product CategoryPMIC - Gate Drivers
Maximum output current1.5A
Channel TypeSingle
Package8SOIC
Current - Peak Output (Source, Sink)1.5A, 1.5A
TypeHigh Side
Manufacturer PackagingTube
Driven ConfigurationHigh-Side or Low-Side
Manufacturer packaging quantity100
Gate TypeN-Channel, P-Channel MOSFET
High Side Voltage - Max (Bootstrap)-
Input TypeInverting
Logic Voltage - VIL, VIH0.8V, 2.4V
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case8-SOIC (0.154", 3.90mm Width)
Product StatusActive
Rise / Fall Time (Typ)25ns, 33ns
Supplier Device Package8-SOIC
Voltage - Supply4.5V ~ 30V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
