TC4421AVOA,Gate Drivers,IC GATE DRVR LOW-SIDE 8SOIC
Reference Only

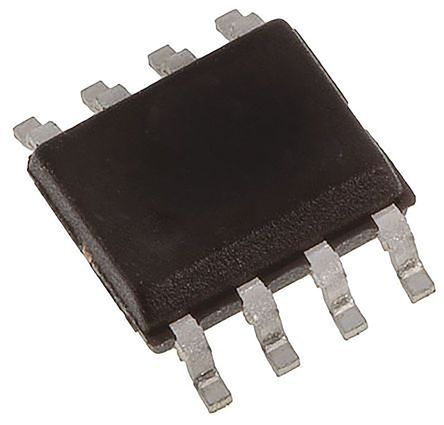

TC4421AVOA
IC GATE DRVR LOW-SIDE 8SOIC
Availability
Product Details
Manufacturer: Microchip Technology
SN Part Number: C1S505200391915
Model Part Number: TC4421AVOA
Product Category: Gate Drivers
Microchip Technology
Standard
752 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Number of drivers1
ManufacturerMicrochip Technology
Product CategoryPMIC - Gate Drivers
Power-supply voltage4.5 to 18V
Channel TypeSingle
Maximum output current10A
Current - Peak Output (Source, Sink)10A, 10A
Temperature range-40 to 125C
Package8SOICN
Driven ConfigurationLow-Side
Gate TypeIGBT, N-Channel, P-Channel MOSFET
TypeLow Side
Manufacturer PackagingTube
High Side Voltage - Max (Bootstrap)-
Manufacturer packaging quantity100
Input TypeInverting
Logic Voltage - VIL, VIH0.8V, 2.4V
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case8-SOIC (0.154", 3.90mm Width)
Product StatusActive
Rise / Fall Time (Typ)38ns, 33ns
Supplier Device Package8-SOIC
Voltage - Supply4.5V ~ 18V
Other Information
Packing
Bulk
Minimum packaging
1
Minimum order quantity
1
Documents
Datasheet
