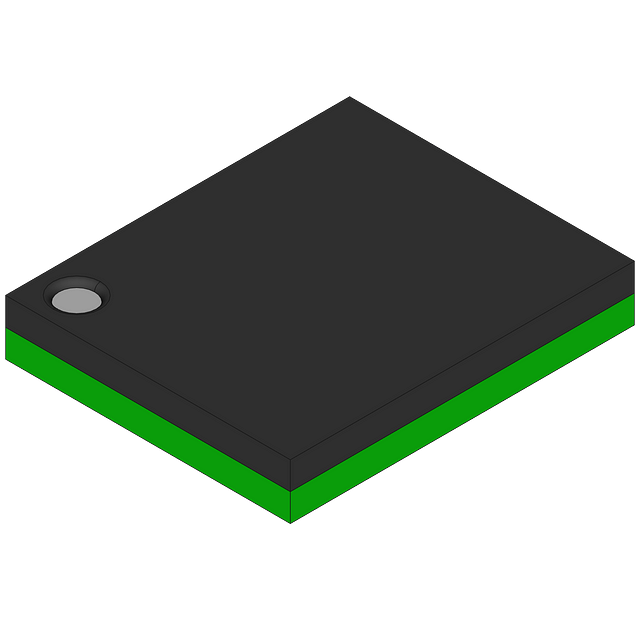

NCP6335DFCT1G,Other Data Converters,IC REG BUCK PROG 4A 20WLCSP

Reference Only

NCP6335DFCT1G

IC REG BUCK PROG 4A 20WLCSP

Availability

Standard: 3000 In Stock

Product Details

Manufacturer: ONSEMI

SN Part Number: NCP6335DFCT1G

Model Part Number: NCP6335DFCT1G

Product Category: Other Data Converters

3000 In Stock

Additional Stock Lead Time: 24 Wks

Quantity

Tech Specifications

Description	Product Attribute
Manufacturer	onsemi
Package	20-UFBGA/WLCSP
Frequency (switching)	3 MHz
Product Category	PMIC - Voltage Regulators - DC DC Switching Regulators
Current - Output	4A
Operating temperature range	-40 to 85C
Frequency - Switching	3MHz
Function	Step-Down
Output voltage	0.6V
Package (Supplier)	20-WLCSP(1.62x2.02)
Mounting Type	Surface Mount
Number of Outputs	1
Fan-out	1
Operating Temperature	-40°C ~ 85°C (TA)
Output Configuration	Positive
Maximum input voltage	5.5V
Topology	Buck
Output type	Programmable
Package / Case	20-UFBGA, WLCSP
Output Power	2.3V
Product Status	Obsolete
Rectifier	Yes
Supplier Device Package	20-WLCSP (1.62x2.02)
Type	Positive
Synchronous Rectifier	Yes
Maximum output voltage	1.4V
Voltage - Input (Max)	5.5V
Output current	4A
Voltage - Input (Min)	2.3V
Voltage - Output (Max)	1.4V
Voltage - Output (Min/Fixed)	0.6V
