MC33151DR2G,Gate Drivers,IC GATE DRVR LOW-SIDE 8SOIC
Reference Only

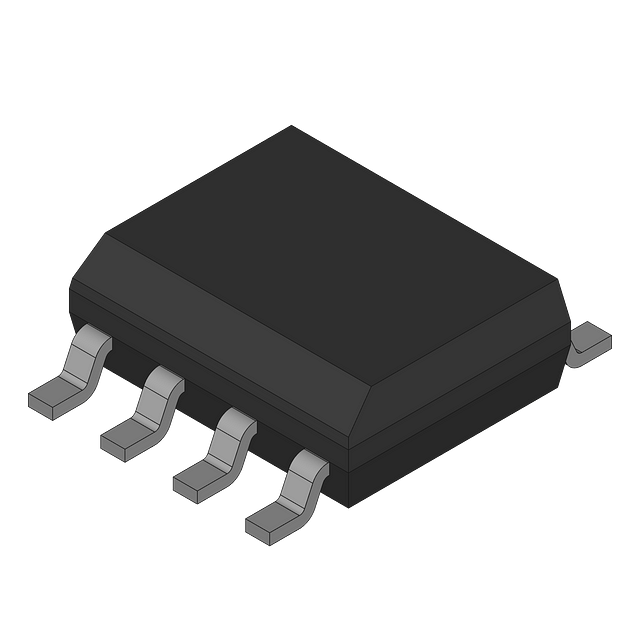

MC33151DR2G
IC GATE DRVR LOW-SIDE 8SOIC
Availability
Product Details
Manufacturer: ONSEMI
SN Part Number: MC33151DR2G
Model Part Number: MC33151DR2G
Product Category: Gate Drivers
ONSEMI
Standard
3000 In Stock
Additional Stock Lead Time: 24 Wks
Quantity
Tech Specifications
Description
Product Attribute
Maximum output current1.5A
Manufactureronsemi
Product CategoryPMIC - Gate Drivers
PackageSOIC N
Channel TypeIndependent
TypeHigh Speed
Current - Peak Output (Source, Sink)1.5A, 1.5A
Manufacturer PackagingTape & Reel
Manufacturer packaging quantity2500
Driven ConfigurationLow-Side
Gate TypeN-Channel MOSFET
High Side Voltage - Max (Bootstrap)-
Input TypeInverting
Logic Voltage - VIL, VIH0.8V, 2.6V
Mounting TypeSurface Mount
Number of Drivers2
Operating Temperature-40°C ~ 150°C (TJ)
Package / Case8-SOIC (0.154", 3.90mm Width)
Product StatusActive
Rise / Fall Time (Typ)31ns, 32ns
Supplier Device Package8-SOIC
Voltage - Supply6.5V ~ 18V
Other Information
Packing
Minimum packaging
0
Minimum order quantity
0
